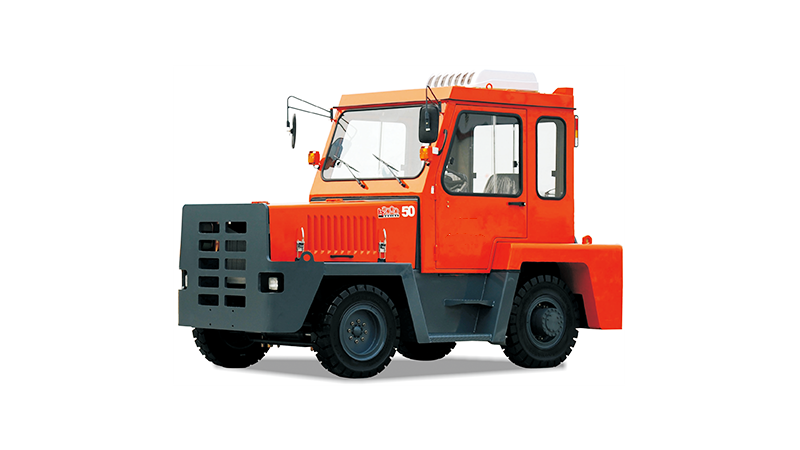

Internal Combustion Tug Tow Tractor 3 - 8t IC Still Tow Tractor High Performance

Brand Name : M&D

Certification : CE ISO

Place of Origin : china

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 200 set per month

Delivery Time : 15-20 days

Packaging Details : export standard packing

color : customised

Operation Type : seated

charging : Wireless LAN

material : Carbon Steel

controller : Italy ZAPI

Warranty : 1 year

Contact Now

red steel Internal-combustion tow tractor 3-8t IC still tow tractor for use on highway and railway

Brief Introduction:

1.The appearance is vigorous and powerful, the frame is of welded structure with high strength steel plate, the casted counterweight improves tractor stability and shock resistance, the whole tractor has good rigidity and impact resistance;

2. The whole tractor adopts domestic or international famous brand diesel engine which exclusive use in engineering machinery, the adopted engines have high power reserve, low noise, little pollution and high reliability;

3. HELI homemade domestic leading fully hydraulic transverse cylinder powered steering has easy and accurate steering and operating feeling;

4. Superior devised transmission system matched with engine power output perfectly;

5. International advanced hydraulic transmission and driving technology are adopted, moreover, precision numerical control machines and processing centers and other processing, testing means ensures the processing quality of parts, makes the torque converter, transmission case, drive axle and other core components of superior performance and high reliability, and significantly better than the same type of domestic products;

6. Compared with the locomotive, the tractor has a flexible operation, and the cost is greatly reduced.

Technical Parameters

Model			QYCD30-CUG4	QYCD50-CU2	QYCD80-WX3G
Max.drawbar.pull		kN	30	50	80
Max.travel speed(without load)		km/h	22	23	30
Total weight(including oil and coolant)		kg	4900	7540	12000
Overall dimensions	Overall length	mm	3140	3720	3910
Overall dimensions	Overall width	mm	1720	1995	2180
Center height of coupler		mm	880-1000	450	450
Tyre model	Front		6.50-10 (solid tyre)	2-7.50-15 (solid tyre)	2-7.50-16 (solid tyre)

Internal Combustion Tug Tow Tractor 3 - 8t IC Still Tow Tractor High Performance

High flexibility;

Operation stick & pin component has good visuality, the operator can observe the drawbar directly from seat;

Transmission device structure optimization not only reduces noise and the loss of transmission torque but also improves the life of the transmission shaft;

Electro hydraulic direction changing, intelligent gear shifting is the standard configuration of hydraulic truck;

Fuel tank is installed on the side so that fuel adding or discharging is easy.

Internal Combustion Tug Tow Tractor 3 - 8t IC Still Tow Tractor High Performance

Application Area:

1.Warehouse

2.Port

3.Factory

4.Distribution Center

5.Logistics

6.Airport

If you have any other questions,please contact us directly.Our forklift are all with high quality,and you can choose any other engine to equip.It can be produced according to your idea.And we invite you to visit our factory.
